DVR Viewer Installation Instructions

1. Head over to this link <https://ganzsecurity.com/library?pageno=48>

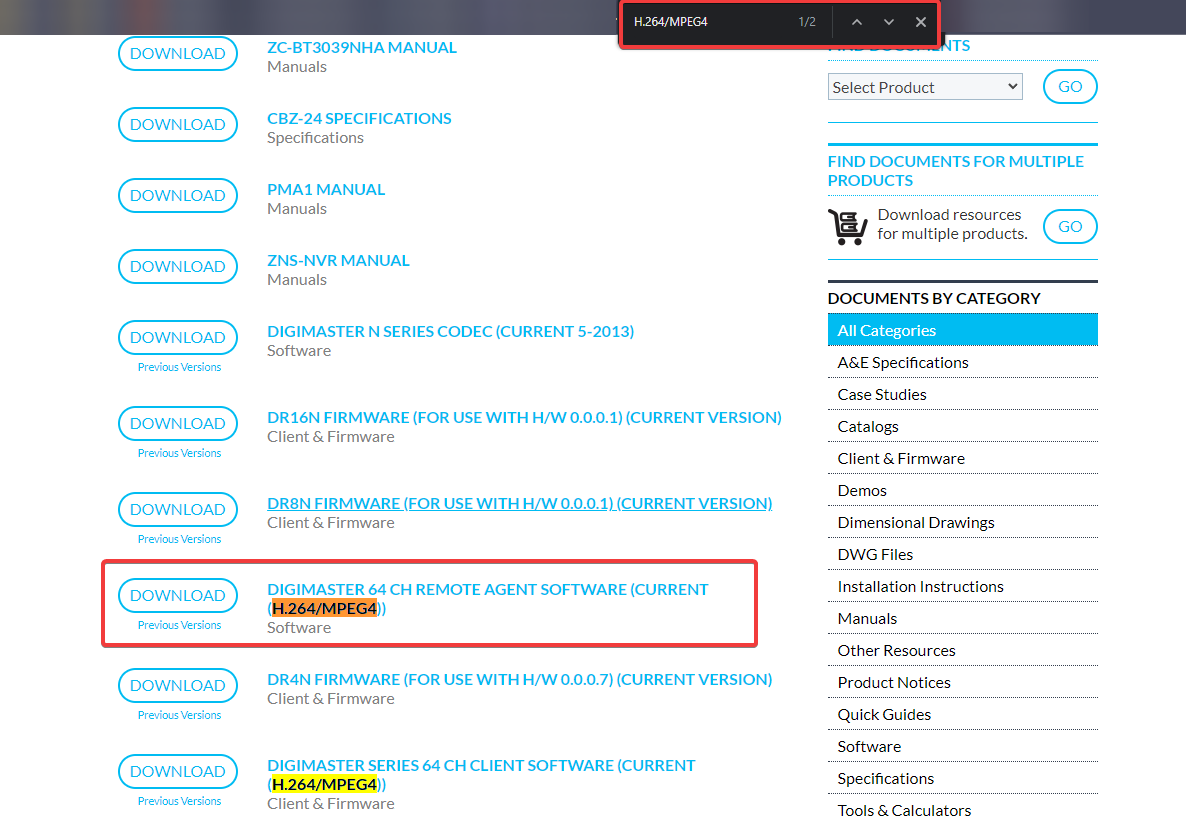

2. On your keyboard press (CTRL + F). Enter H.264/MPEG4. Download the one with Software listed as shown in this snippet:


3. Run the software following the software installation instructions. Once the software has been installed, look for the two icons on your desktop (icon might look different):



4. Open the Remote Agent Software. This is what the screen will look like when you have opened up the software (UI might look different):


5. Click on the wrench icon:




6. Right-click on Site, then Add Group



7. Input a group name:



8. Add in DVR info. You will need the following:

   • DVR Name( Can be anything you want to name the DVR)
   • IP Address
   • Port
   • User Name
   • Password



9. On the DVR Selection menu, use the drop-down to add however many cameras the DVR has, then click Add. Then click OK to finish.



10. Click on the drop-down menu and click on the DVR you want to view:



11. Here is an example of what you might see if you successfully connect to the DVR.
